1. ​Functioning Length: 36"
  2. Functioning Width: 18"
  3. Functioning Height: 38”
  4. Functioning Weight: 140 lbs.
  5. ​Plate Size: 20" x 15 1/2", Features Thick Base Plate

Manuals and Forms

Sales Sheet


Product Manual


Warranty Card

Manuals and Forms

Sales Sheet


Product Manual


Warranty Card

Specifications

  1. Motor: Gas Honda Engine GX160 5.5 HP
  2. Force: 2300 Centrifugal Pounds
  3. Vibration: 3600 VPM
  4. Rotations: 4200 RPM
  5. ​Speed: 559mm/sec
800-469-4178
​or  281-313-2506

Creator of the ORIGINAL Wheelbarrow style mixer

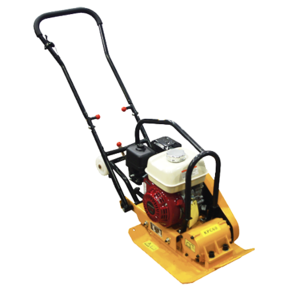

KPC60 Plate Compactor


Description​

The Kushlan Products KPC60 PLATE COMPACTOR with a 5.5 HP engine is perfect for your construction needs. This sturdy and dependable compactor provides big vibrations in an easy to handle unit that has an excellent and specially designed collapsible operating handle. Optional dolly wheels and lifting handle provide stability and mobility for this sturdy tool that provides 3,600 vibrations per minute. Plate size: 20" long by 15 1/2" wide.

  1. ​Foam-Gripped Handle
  2. Wraparound Protective Cage with Adjustable Handle
  3. Heavy-Duty Soil Compactor Provides Superior Compaction In Any Direction
  1. Heavy Offset Milled Weighted Shaft – 3/4"
  2. Collapsible Handle
  3. Optional Wheel Kit
  4. CE – EPA Certified
  1. Force: 2500 Centrifugal Pounds
  2. Vibration: 3600 VPM
  3. Rotations: 3600 RPM
  4. Speed: 559mm/sec
  5. ​Steel Tubing Frame

Specifications

  1. ​2500 lbs Centrifugal Force
  2. 120 ft. min. travel speed
  3. Plate Size: 14-5/8” × 28-1/2”
  4. Length: 48”
  5. ​Width: 16”
  1. Weight: 275 lbs.​
  2. Shock Mounts: Heavy-Duty for reduced vibration
  3. ​12 inch Compaction depth
  4. ​​4300 Vibrations per min

Manuals and Forms

Sales Sheet


Product Manual


Warranty Card

Specifications

  1. Steel Tubing Frame
  2. Heavy Offset Milled Weighted Shaft – 3/4” Collapsible Operating Handle
  3. Optional Wheel Kit CE – EPA Certified

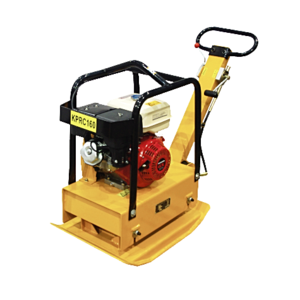

KPRC 160 Reversible Plate Compactor


Description​

Heavy-duty soil compactor provides superior compaction in any direction. Heavy-duty shock mounts for reduced vibration. 12 inch compaction depth, 4300 vibrations per min, 2500 lbs centrifugal force. The Kushlan Products KPRC 160 Reversible Plate Compactor has a travel speed of 120 ft. per minute. Plate Size: 14-5/8" × 28-1/2" ; Length 48" ; Width 16"; foam-gripped handle has a throttle control lever and a reverse lever. Wraparound protective cage with adjustable handle. Weighs 275 lbs

  1. ​Functioning Length: 39"
  2. Functioning Width: 20"
  3. Functioning Height: 38”
  4. Functioning Weight: 158 lbs.
  5. ​Plate Size: 18" x 23 5/8"
  6. Motor: Gas Engine 5.5 HP

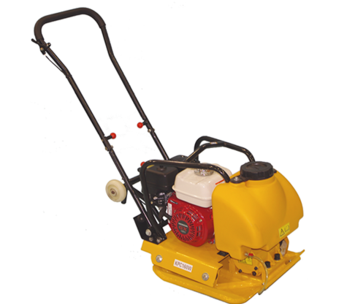

KPC 160W Plate Compactor


Description​

The Kushlan Products Plate Compactor is perfect for your construction needs.  This single-direction Plate Compactor With Water Tank and Sprayer has a collapsible handle. Force of 2500 centrifugal pounds. 4200 vibrations per minute, and travel speed of 22-1/64". Plate Size: 18" x 23 5/8", Length 39" Width 20". Removable fluid tank and dolly wheels for easier movement.
